Atlas Baseplate 9,000 lbs. Capacity 2 Post Auto Lift

Your Price: $2,399.00
Call us at 888-998-8665 for our current Atlas promotion.

Product Code: XH-9KBPX

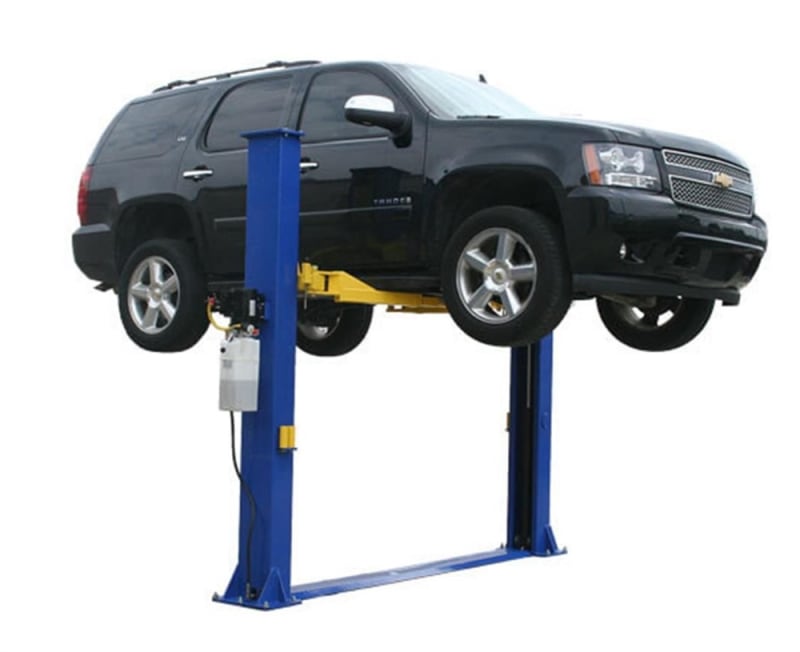

Atlas Baseplate 9,000 lbs. Capacity 2 post lift

The Atlas® 9KBPX is an economically designed baseplate two-post lift great for low ceiling garages. The total column height of 111 ½” (9 feet 3 ½ inches) allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 feet 6 inches. The Atlas® 9KBPX “chain over roller” lift features a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain. The reliable dual chain-drive cylinders, symmetric arms, and automatic arm restraints make this the perfect choice for “Mr. Homeowner” or small commercial shop looking to service cars, SUV’s and light duty trucks (not recommended to lift Diesel Dually or other large trucks).

Capacity	9,000 LB.
Overall Height	111 1/2" (9’ 3 1/2")
Overall Floor Width	134 1/2" (11’ 2 1/2")
Outside Column to Outside Column	124 7/8" (10’ 4 7/8")
Maximum Lift Height (Without Adapters)	74 1/2"
Maximum Lift Height (With Adapters)	81"
Minimum Arm Height	4"
Inside Column	110” (9’ 2”)
Drive Thru	101” (8’ 5”)
Column Size	7 1/4" x 11"
Column Thickness of Steel	5mm
Base Of Lift	14 1/4" x 18 1/4"
Motor/Electrical Requirement	220 volt single (1) phase. A 30 amp breaker is recommended
Oil Requirement	3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight	1,400 LBS.
Adapter Heights	4 Each 1.5”, 5”
Arm Hole/Adapter Peg Size	1.5”

Requires a minimum of 4" of concrete with a 3000 psi. rating
