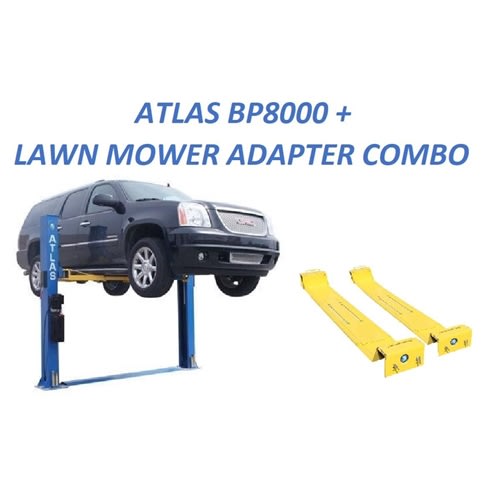

Atlas ATTD-BP8-COMBO, BP8 & Lawn Mower Adapter Combo

Features and Benefits:

• Combo includes BP8 8,000 lb. capacity lift and Lawn Mower Adapter
• Hobbyist Grade Lift "� Not intended for heavy commercial use
• Baseplate, Open-Top Style Lift
• 3-Stage front arms/2-Stage rear arms
• Automatic Arm Restraints
• Single-Point Lock Release
• Double Safety Lock System
• Dual Hydraulic Chain-Drive Cylinders
• Free 12 Piece Truck Adapter Set
• Mounting Hardware Included
• This part number WILL CALL ONLY

The Atlas BP8000 is a baseplate two-post lift designed for low ceiling garages. The total column height of 108 inches or 9 feet allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 foot 3 inches. The BP8000 also has many of the popular features found on larger more expensive lifts, including a single-point lock release, Super-symmetric arms, and a twelve piece truck adapter set.

This combo includes the Atlas Lawn Mower Adapter or LMA. The LMA allows the user to raise lawn tractors, ATV's, UTV's, golf carts, and other small vechicles. NOTE: the capacity of the adapter when used on the BP8000 is less then 8,000 lbs. If you have questions about the LMA and it's capabilities please contact a sales rep.

Atlas ATTD-BP8000 Specifications

• Capacity 8,000 LB.
• Overall Height 108" (9')
• Overall Floor Width 132" (11')
• Outside Column to Outside Column 124" (10' 4")
• Maximum Lift Height (Without Adapters) 75 1/2"
• Maximum Lift Height (With Adapters) 86 1/2"
• Minimum Arm Height 4"
• Inside Column 109 1/8"� (9' 1 1/8"�)
• Drive Thru 99"� (8' 3"�)
• Column Size 7 1/4" x 11"
• Column Thickness of Steel 6mm
• Base Of Lift 17 1/2" x 17 3/4"
• Motor/Electrical Requirement 220 volt single (1) phase (A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 1,300 LBS.
• Adapter Heights 4 Each 2"�, 3"�, 6"�
• Arm Hole/Adapter Peg Size 1.5"�
• Requires a minimum of 4" of concrete with a 3000 psi. rating

  The Atlas LMA Specifications (VARY BY LIFT AND WHEELBASE):

  • Capacity: Up to 5,000 lbs
  • Adjusts in Width: 8' to 11'
  • Wheel Base: 32" to 90"
  • Wheel Well Width: 12"
  • Thickness of Steel: 3/16"
  • Shipping Weight: 600 lbs.
  • Will fit lift arms up to 5 1/2" wide
