Atlas XH-PRO8000EXT-L Description

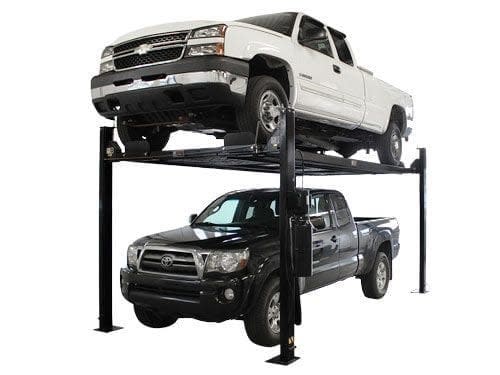

Atlas Auto Equipment is proud to announce the arrival of the new Atlas® Garage Pro 8,000 EXT-L (extra long and slightly wider) Service/Storage Lift. This lift is 20 inches longer (wheelbase) and 3 inches wider than the Atlas® Garage Pro 8000 EXT. Or to compare to the original, this lift is 20 inches longer (wheelbase), 3 inches wider, and 14 inches taller than the Atlas® Garage Pro 8000! The extra runway length will accommodate almost all of the longer wheelbase pickup trucks, except duallys. This is because the dual rear wheels are TOO WIDE to fit between the column lock assemblies. Check out the Atlas® Garage Pro 9000 or the Atlas® 409-HP if you need a portable lift for your dually!
The portable Atlas® Garage Pro 8000 EXT-L includes a caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes and requires no tools.
All Atlas® portable four post lifts (8,000 lb. capacity) are designed and built for use by Mr. Homeowner or restoration shops. These lifts are not designed to work in commercial repair shops that raise and lower a lift several times per day. If you have questions about which Atlas® lift will best suit your application, please ask your salesperson.

Specifications: Atlas XH-PRO8000EXT-L

Atlas Garage Pro 8000 EXT-L Specifications
Capacity												8,000 LB
Lifting Height												84 1/2" (7' 1/2")
Overall Width (Without Motor)												108" (9')
Overall Width (With Motor)												116 1/2" (9' 8 1/2")
Length Between Columns												176 1/2" (14' 8 1/2")
Overall Length with Approach Ramps												227" (18' 11")
Overall Length without Approach Ramps												195" (16' 3")
Approach Ramps												36 3/4" (3' 3/4") x 19 5/8" (1' 7 5/8")
Total Runway Width												22" (1' 10")
Runway Length												185" (15' 5")
Runway Thickness												4 1/2"
Width Between Runways												38" (3' 2")
Width Between Runway Rails												34" (2' 10")
Outside Runway to Outside Runway												77 3/4" (6' 5 3/4")
Clearance Under Runways												Max: 80" (6' 8")
Size of Column												6 1/4" x 3 3/8"
Clearance Between Columns												98" (8' 2")
Base of Column												9 5/8" x 11 1/2"
Height of Columns												97 1/2" (8' 1 1/2"); 100" (8' 4") with Bolts
Maximum Wheel Base												173" (14' 5")
Drive Thru (Outside of tire to outside of tire)												84" (7')
Cable Diameter												.350"
Gauge Of Steel												6 Gauge (.1875"/ 3/16" / 4.75mm)
Motor												110 Volt. A 30 amp breaker is required.
Oil Requirement												3-5 Gallons AW32/AW46
Shipping Weight												1,900 LB.
