Autel - ADAS Complete Calibration Package

Complete Autel ADAS Calibration Package. Easily Interchangeable Components For Secure Millimeter Accuracy.

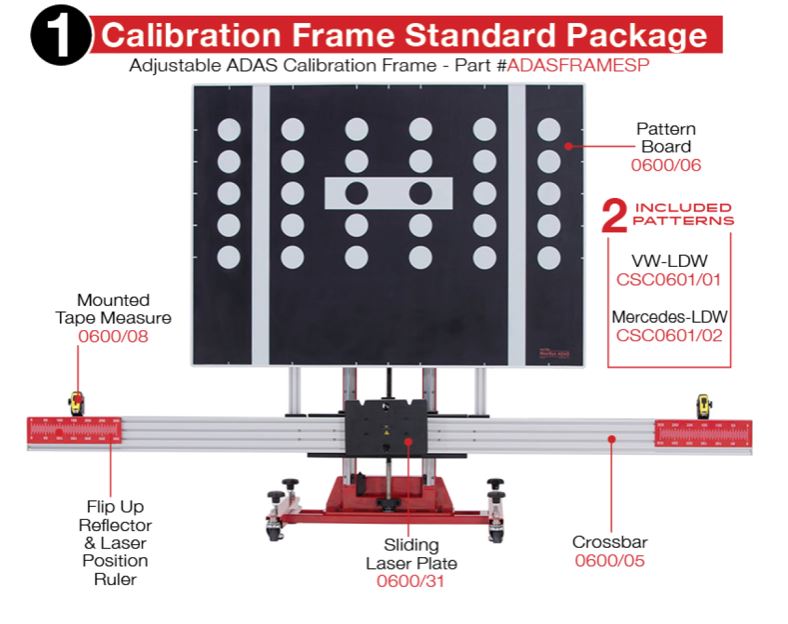

The Autel calidration frame provides compatible use with vehicle leveling lifts by offering a taller than average extended adjustable height. The large automatic screw mechanism quickly raises and lowers the calibration frame pattern board and crossbar meet the vehicle.
Alignment procedure required to calibrate OE specified vehicle thrust angle before completing ADAS calibrations.
Autel ADAS calibration frame provides OE equivalent accuracy by wheel clamps attached securely to rim. Precise laser leveling from the Autel wheel clamp ensures the lowest degree of deviation from the OE specified thrust angle.

• NOT INCLUDED - Autel MaxiSys Scan Tool with ADAS Calibration Tablet
• Pattern Board 0600/06
• 2 Patterns VW-LDW CSC0601/01 Mercedes-LDW CSC0601/02
• Sliding Laser Plate
• Mounted Tape Measure
• Flip Up Reflector & Laser Position Ruler
• Crossbar 0600/05
• Push Button Power Lifter
• Adjustable Base
• Base Crossbar 0600/02
• Base Holder 0600/01
• ACC Reflector 0602/01
• Wheel Clamp Lasers 0500/02
• Wheel Clamps 0500/01
• Honda - LDW CSC0601/05
• Honda - LDW CSC0601/08-L
• Honda - LDW CSC0601/08-R
• Honda / IA-LDW CSC0601/09
• Nissan / Infiniti-LDW CSC0601/06-L
• Nissan / Infiniti-LDW
• Toyota-LDW CSC0601/15
• Nissan-LDW CSC0601/03-L
• Nissan-LDW CSC0601/03-R
• Toyota / Lexus-LDW CSC0601/11
• Mercedes-LDW CSC0601-02
• Target Board Holder 0600/22

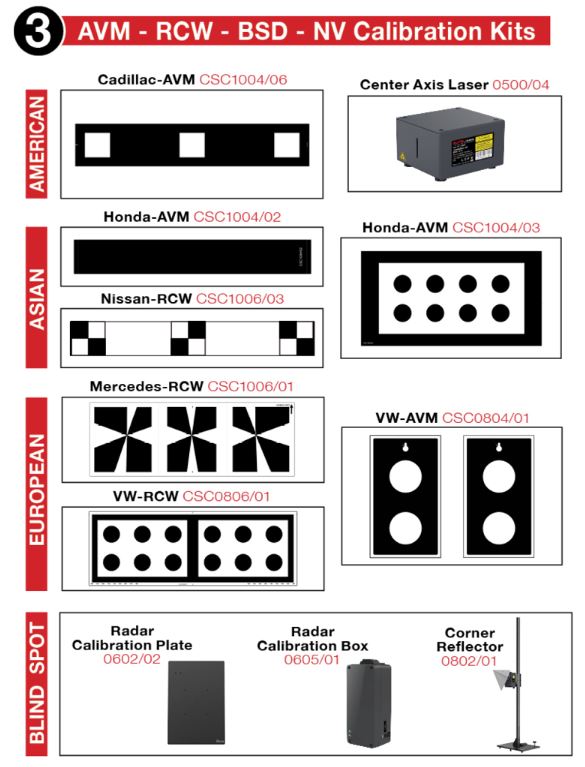

• Cadillac - AVM CSC1004/06
• Center Axis Laser 0500/04
• Honda - AVM CSC1004/02
• Honda - AVM CSC1004/03
• Nissan - RCW CSC1006/03
• Mercedes - RCW CSC1006/01
• VW-RCW CSC0806/01
• VW-AVM CSC0804/01
• Radar Calibration Plate 0602/02
• Radar Calibration Box 0605/01
• Corner Reflector 0802/01

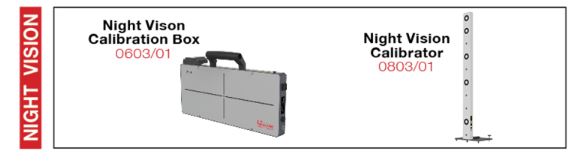

• Night Vision Calibration Box 0603/01
• Night Vision Calibration 0803/01
