MaxiSYS IA700T

Wheel Alignment Pre-Check

IA700 Packages: IA700T

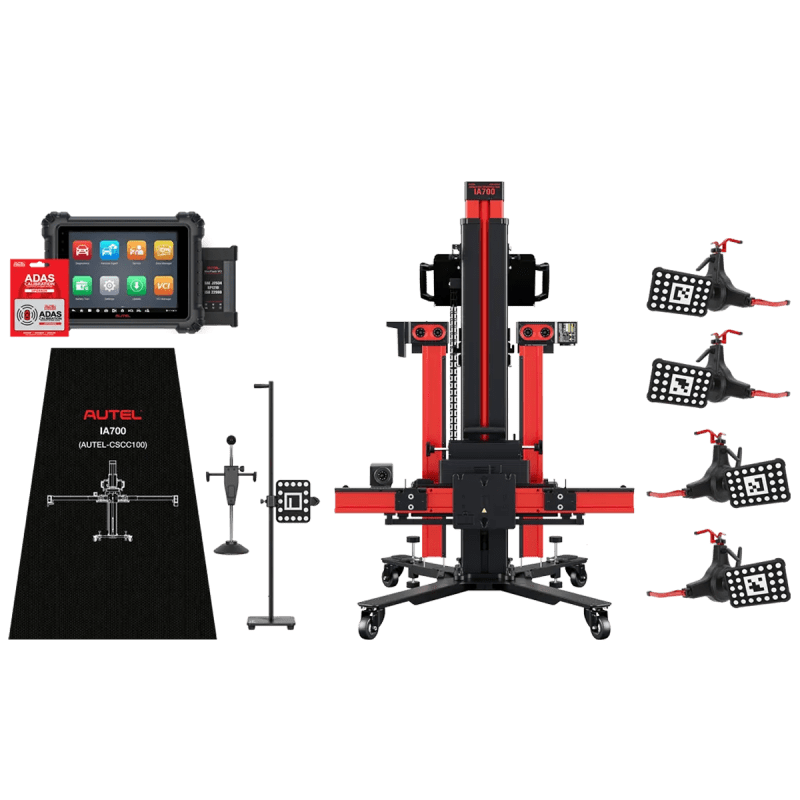

The IA700 frame with robotic crossbar features six high-resolution positioning and tracking cameras, enabling target positioning and prompting unlevel floor compensation. The package includes a MaxiSYS 909, an advanced diagnostics tablet with a wireless VCI and J2534 pass-thru device that supports the latest vehicle protocols, and an ADAS calibration software upgrade card for static and dynamic ADAS calibration coverage for most U.S., Asian, and European ADAS-equipped vehicles. The Autel IA700 compatibility with the MA600 and IA900 targets, patterns, and calibration components makes it the ideal solution for existing MA600 users seeking a mobile system with the speed and accuracy of optical positioning. IA900 users purchasing an IA700 can double calibration capacity without purchasing additional targets. Frame quickly disassembles for transport or space-saving storage. The frame ships with four tire clamps with camera targets, a steering wheel lock, brake chocks, power supply, alignment aid, and frame cover. The package includes a MaxiSYS 909, an advanced diagnostics tablet with a wireless VCI and J2534 pass-thru device that supports the latest vehicle protocols, and an ADAS calibration software upgrade card for static and dynamic ADAS calibration coverage for most U.S., Asian, and European ADAS-equipped vehicles. A one-year Limited Warranty covers the MaxiSYS IA700 frame.

Modular ADAS Calibration Frame with wheel alignment pre-check and optical positioning.
Compatible with MA600 and IA900 systems targets, patterns, and calibration components
Includes a MaxiSYS 909, an advanced diagnostics tablet with a wireless VCI and J2534 pass-thru device that supports the latest vehicle protocols, and an ADAS calibration software upgrade card for static and dynamic ADAS calibration coverage for most U.S., Asian, and European ADAS-equipped vehicles.
Frame features robotic crossbar and six-high definition positioning and tracking cameras for optical target positioning and prompting unlevel floor compensation.
Frame disassembles quickly for easy transport or space-saving storage.
Includes four tire clamps with camera targets, a steering wheel lock, brake chocks, power supply, alignment aid, and frame cover.
Covered by one-year Limited Warranty

WHY SHOULD I OFFER ADAS REPAIRS?

Repairing ADAS-equipped vehicles is becoming more of a necessity
We provide the technology for shops to reap the benefits of ADAS repairs

WHEN IS ADAS CALIBRATION REQUIRED?

Windshield Replacement
Suspension Repairs
Wheel Alignment
Tire Size Change
Related DTC Is Present
Sensor or Mounting Bracket Replacement
Front Airbag Deployment If Deflected Off Windshield
ADAS-Related TSBs/Manufacturer Position Statement Requirements*
Mechanical Procedures Like Radiator And Condenser Repairs That Require Removal Of Front-Mounted Sensors

*Refer to NHTSA, the manufacturer or ADAS Tech Support for more information

SERVICE PROFITS

Having your own ADAS Calibration System saves you time and money that would be spent working with another shop
It improves cycle time, allows your shop full control of the repair
No longer transporting vehicles between shops increases up time
Autel ADAS users report earning 50% ROI (full cost of investment) as early as 4-6 weeks with regular use

WHICH FRAME TO CHOOSE?

Choosing which to consider largely depends on one thing...
How do you intend to perform calibrations?

Q: Are You Performing All ADAS Calibrations On Site?

A: STANDARD FRAME / IA700

Q: Are You Performing ADAS Calibrations In Multiple Locations?

A: MA600

Q: Are You Integrating ADAS Calibrations With An Alignment Machine?

A: STANDARD FRAME
