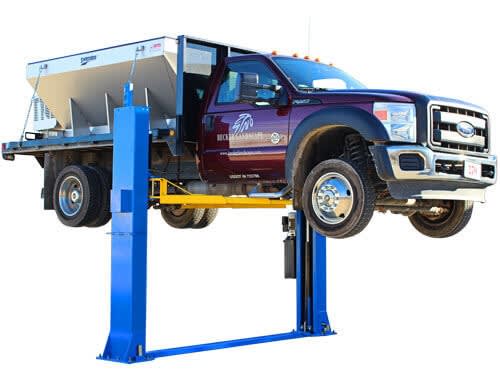

Atlas BP12000X

The Atlas® BP-12000 is a commercial grade heavy duty 12,000 LB. capacity 2 post base plate above ground lift. This above ground lift has over sized columns, symmetric three stage arms, and single point lock release. This lift is perfect for those commercial garages that want to lift heavier vehicles but have limited ceiling height. The Atlas® BP12000 can be installed at two different width settings to accommodate wider trucks or trailers and to facilitate “driving between” the lift columns.

Atlas® BP12000X Specifications

Capacity												12,000 LB.
Lifting Time												Ask Your Salesperson
Overall Height (With Cylinder)												122 1/2"
Overall Width (With Handle/Boxes)												154 1/2" (Wide Configuration) 149 1/8" (Narrow Configuration)
Overall Width												150 3/4" (Wide Configuration) 145 3/8" (Narrow Configuration)
Outside Column to Outside Column												141 1/4" (Wide Configuration) 135 7/8" (Narrow Configuration)
Maximum Lift Height (Without Adapters)												70 1/4"
Maximum Lift Height (With Adapters)												80 3/4"
Minimum Arm Height												4 1/2"
Base Plate Width												11 1/2"
Inside Column												123 1/2" (Wide Configuration) 118 1/8" (Narrow Configuration)
Drive Thru												109" (Wide Configuration) 103 5/8" (Narrow Configuration)
Column Size												8 3/4" x 14"
Column Thickness of Steel												6mm
Carriage Thickness of Steel												6mm
Arms Thickness of Steel												6mm
Cable Diameter												.375"
Base Of Lift												18 1/2" x 21 1/2")
Motor/Electrical Requirement												2HP 220V +/- 5% (209-231volts) single (1) phase. A 30 amp breaker is required.
Oil Requirement												3-5 Gallons AW32/AW46
Shipping Weight												2,300 LB.

Requires a minimum of 6" of concrete with 3000 psi.

All lifts come with a step by step instruction manual.

Atlas ATTDBP12000X, BP12000 Baseplate 12,000 lb. Capacity 2-Post Lift
